ATEN 2-port USB 4K HDMI KVM Switch sa kablovima (CS22H)

  • Cijena (VPC): 57,55 €
  • Šifra artikla: 14.01.7213
  • Kataloški broj: 14.01.7213
  • Robna marka: ATEN
  • Jamstvo: 24 mjeseca

Tehnička specifikacija

- Switching between two computers can be as easy as the push of a button
- Refresh your workspace with the CS22H by setting up a desktop console with one set of keyboard/mouse/display for control over two computers via USB and HDMI connections, and youre all set
- The compact CS22H helps create an organized desktop with reduced cable clutter, and brings in vivid 4K viewing quality to lift up work performance
- Superior AV Performance in Vivid 4K: The CS22H empowers your desktop operations with audiovisual enhancement with 4K DCI compliance and audio connectivity
- Space Efficient Desktop Setup: The compact and easy-hook design is helpful to expanding desktop workspace in an orderly fashion for improved work productivity
- Smooth Cross-Platform Integration: The CS22H enables the integration of different computer systems (Windows, Mac and Linux) that are accessible over one KVM console

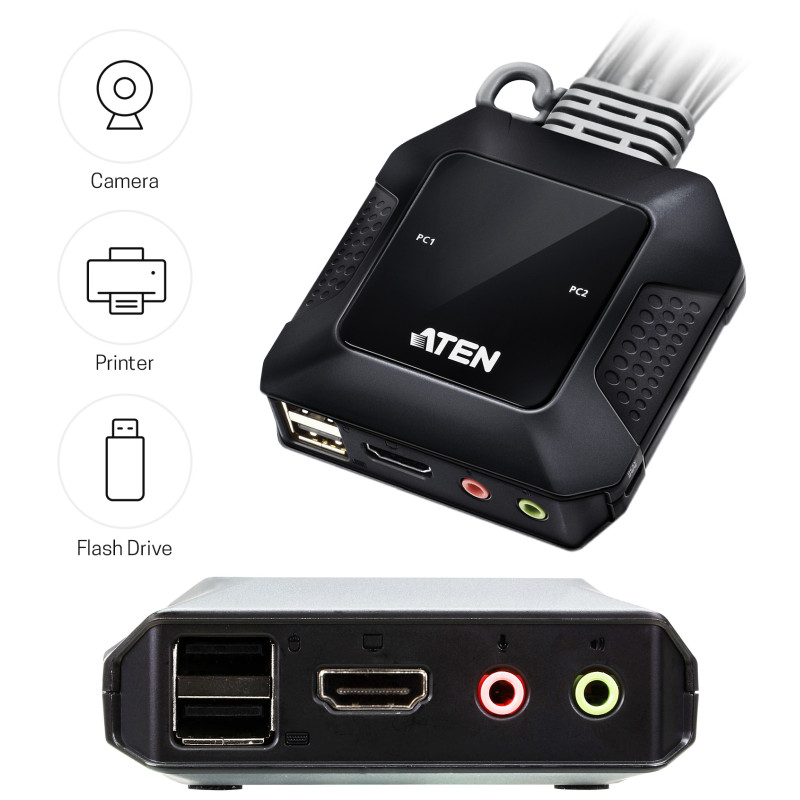

- Flexible USB Peripheral Sharing: The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement
- Plug in. Power on: The CS22H supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports
- Applications: The CS22H Cable KVM Switch allows for an ideal desktop setup in office, media design work and entertainment

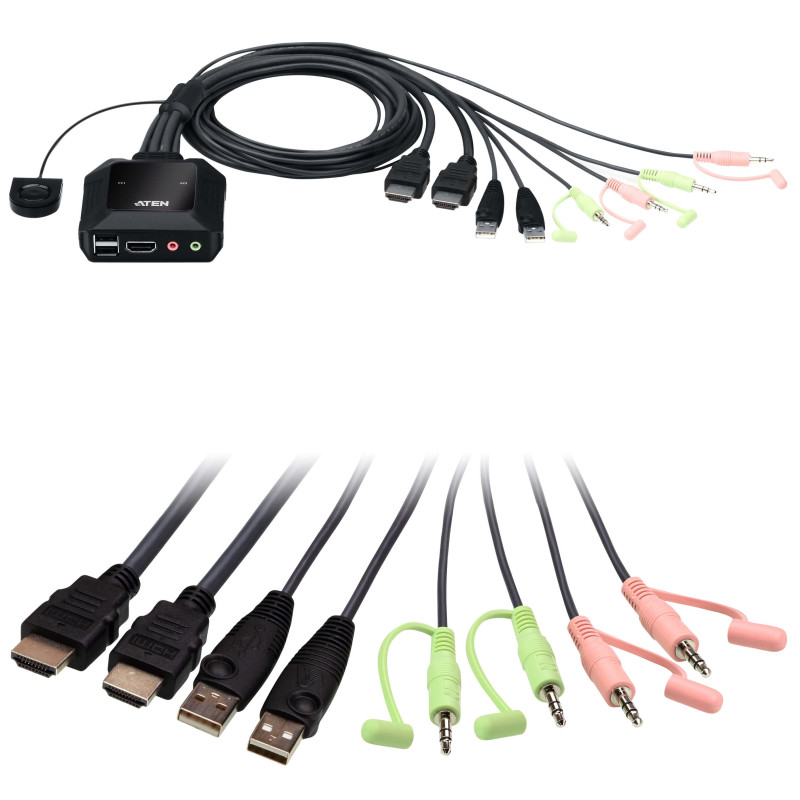

- For a smart-looking, neat and tidy work environment, ATENs patented all-in-one design Cable KVM Switches eliminate the bother of connecting multiple cables by consolidating keyboard, video and mouse cables into one, and building that cable right into switch
- The ATEN CS22H Cable KVM Switch can instantly access two computers with a USB and HDMI console while offering superior video quality up to 4K DCI (4096×2160 @ 60Hz), bringing users maximum convenience and optimum visuals
- When users want to switch between the computers, simply press the built-in remote port selector to enjoy intuitive operations. Moreover, the CS22H supports USB peripheral sharing, easily integrating data and ensuring uninterrupted data transmission
- Its compact and bus-powered design provides an efficient installation without bulky cable setups, and the newly-designed hook allows users to place the CS22H wherever they want to keep desktop tidy and well-organized
- This plug and play switch is ideal for people who need quick control to multitask between two computers at the desktop in any environment

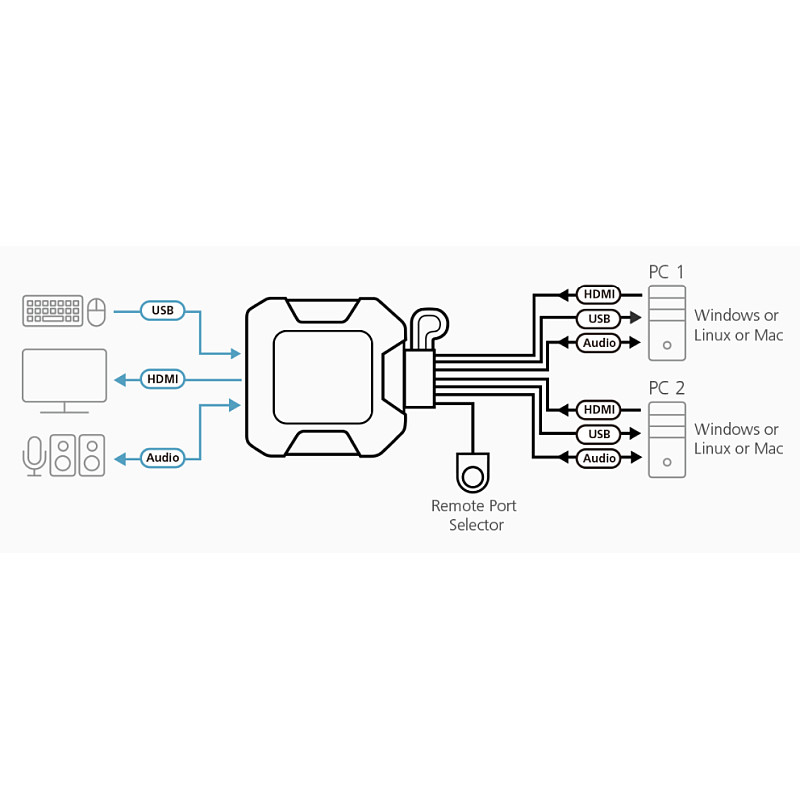

- One USB keyboard, mouse and one HDMI monitor control two HDMI computers
- Superior video quality - up to 4K DCI (4096×2160 @ 60Hz)
- Computer selection via remote port selector
- HDMI compliant; HDCP 2.2 compliant
- Supports USB hot-plugging
- The console USB ports can be used for USB peripheral sharing
* The CS22H may require an external power supply via the USB Micro-B Power Port. For the USB Micro-B cable connecting to the USB Micro-B Power Port, it requires a separate purchase based on the type of the power supply you use
- Multiplatform support - Windows, Mac and Linux
- Hook design for space-saving and organized workstation
- Plug and play
- Bus-powered - no external power adapter required

- Computer Connections: 2
- Port Selection: Remote Port Selector

- Console Ports:
1× HDMI Female
2× USB Type A Female
1× 3.5mm Audio Jack Female (Green)
1× 3.5mm Audio Jack Female (Pink)
- KVM (Computer) Ports:
2× HDMI Male
2× USB Type A Male
2× 3.5mm Audio Jack Male (Green)
2× 3.5mm Audio Jack Male (Pink)
- Power (Optional)
1× USB Micro Type B Female

- KVM Port (On Line /Selected): 2 (White)

- KVM: 2× 1.2 m
- Remote Port Selector: 1.8 m

- Keyboard / Mouse: N/A

- 4096×2160 @ 60Hz

- DC5V:3.47W:29BTU

- Operating Temperature: 0C to 50C
- Storage Temperature: -20C to 60C
- Humidity: 0% - 80% RH, Non-condensing

- Housing: Plastic
- Weight: 0.34 kg
- Dimensions (L×W×H): 8.34×8.42×3.04 cm
* For some of rack mount products, please note that the standard physical dimensions of W×D×H are expressed using a L×W×H format

1× CS22H 2-Port USB 4K HDMI Cable KVM Switch
1× User Instructions
